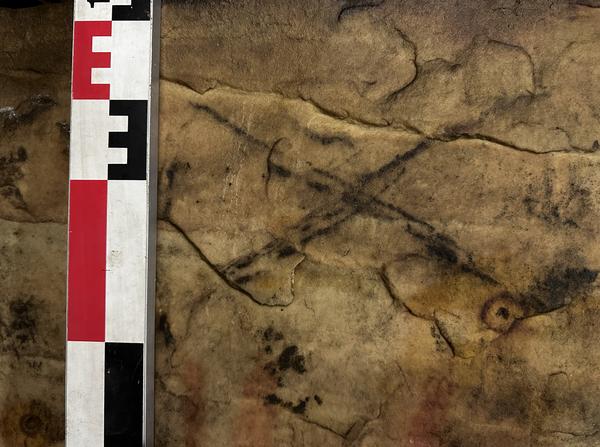

Black Pigment "X" Glyph 2f - pXRF 30: Antimony = 0.002% +/- 0.001, Iron = 0.258% +/- 0.011, and Aluminum = 99.735% +/- 0.005
pXRF 27: Barium = 441.47 ppm +/- 42.5, Antimony = 55.43 ppm +/- 10.88, Tin = 28.54 ppm +/- 9.43, Cadmium = 17.57 ppm +/- 7.74, Silver = 15.23 ppm +/- 5.33, Zirconium = 41.25 ppm +/- 7.32, Strontium = 12.42 ppm +/- 2.38, and Iron = 8277.52 ppm +/- 141.43
[note... the Iron % and ppm is higher than expected from just the bedrock]
209
Chief head facing down under circle pXRF 63: Iron = 0.367% +/- 0.012 and Aluminum = 99.63% +/- 0.006
pXRF - 70: Barium = 349.05 ppm +/- 38.4, Antimony = 30.26 ppm +/- 9.74, Tin = 17.95 ppm +/- 8.5, Cadmium = 12.73 ppm +/- 7.02, Zirconium = 42.56 ppm +/- 6.7, Strontium = 7.32 ppm +/- 2.04, Rubidium = 2.65 ppm +/- 1.35, and Iron = 2364.33
pXRF 75: Iron = 0.626% +/- 0.017 and Aluminum = 99.325% +/- 0.01
Hand with eye (Glyph 209) pXRF 64: Iron = 0.453% +/- 0.015 and Aluminum = 99.544% +/- 0.008
pXRF 69: 422.48 ppm +/- 42.52, Antimony = 54.46 ppm +/- 10.91, Tin = 42.71 ppm +/- 9.6, Cadmium = 23.32 ppm +/- 7.85, Silver = 10.95 ppm +/- 5.27, Zirconium = 37.49 ppm +/- 7.29, Strontium = 8.65 ppm +/- 2.28, Iron = 3054.54 ppm +/- 87.94, Manganese = 76.26 ppm +/- 32.77
pXRF 76: Iron = 0.325% +/-0.012 and Aluminum = 99.671% +/- 0.006

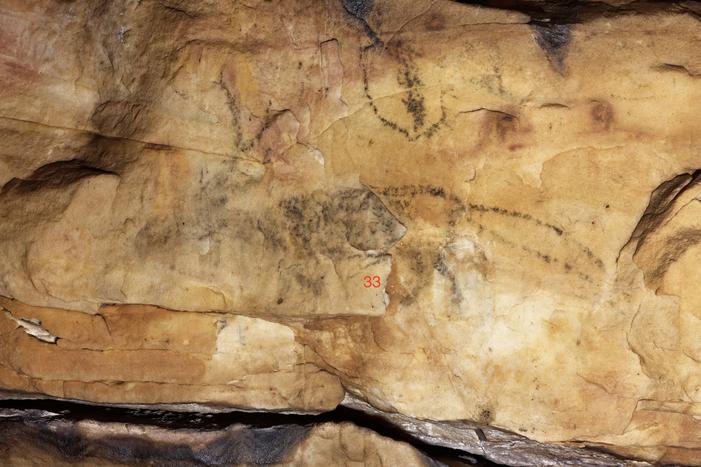

Cave 1, Panel 2,Black Pigment Glyph 33 (Great Elk?)
pXRF 5: Iron = 0.284% +/- 0.011, and Aluminum = 99.714% +/- 0.005
pXRF 19: Barium = 485.82 ppm +/- 43.28, Antimony = 60.69 ppm +/- 11.07, Tin = 44.73 ppm +/- 9.72, Cadmium = 25.96 ppm +/- 7.95, Silver = 17.79 ppm +/- 5.44, Zirconium = 45.56 ppm +/- 7.46, Strontium = 11.27 ppm +/- 2.38, and Iron = 1595.76 ppm +/- 65.78.
-------------------------------------------------------------------------------------------------------------------------------------------
Cave 1, Panel 5, under pelted arm

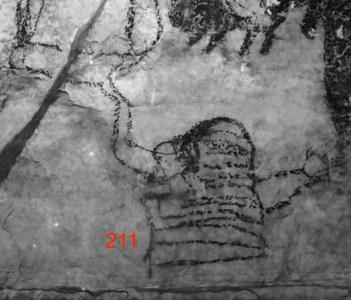

Black pigment Bundle (Glyph 211) pXRF 61: Iron = 0.263% +/- 0.01 and Aluminum = 99.718% +/- 0.004
pXRF 72: Barium = 402.73 ppm +/- 39.84, Antimony = 43.5 ppm +/- 10.15, Tin = 30.38 ppm +/- 8.9, Cadmium = 15.04 ppm +/- 7.27, Silver = 13.08 ppm +/- 4.98, Zirconium = 39.3 ppm +/- 6.86, Strontium = 7.03 ppm +/- 2.09, and Iron = 1286.16 ppm +/- 55.64
pXRF 73: Iron = 0.322% +/- 0.012 and Aluminum = 99.657% +/- 0.006

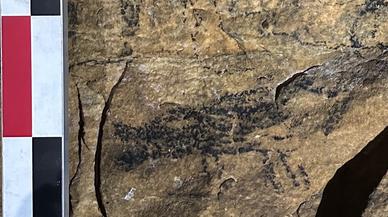

Blake pigment Animal facing left (Glyph 210) pXRF 62: Iron = 0.434% +/- 0.015 and Aluminum = 99.563% +/- 0.007
pXRF 71: Barium = 463.65 ppm +/- 43.47, Antimony = 50.31 ppm +/- 11.03, Tin = 36.23 ppm +/- 9.68, Cadmium = 24.61 ppm +/- 7.97, Silver = 17.30 ppm +/- 5.46, Zirconium = 39.66 ppm +/- 7.43, Strontium = 11.19 ppm +/- 2.39, Rubidium = 3.28 ppm +/- 1.54, Iron = 2430.45 ppm +/- 80.1, and Manganese = 57.78 ppm +/- 32.47
pXRF 74: Iron = 0.315% +/- 0.017 and 99.682% +/- 0.005

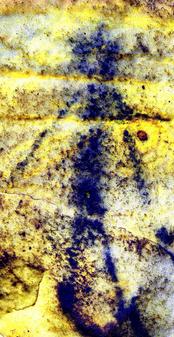

Normal Photography and DStretch processed image (filter YRE) of a portion of Cave 1, Panel 2.
Cave 1, Panel 1, Black pigment Bundle (Glyph 211) 61: Iron = 0.263% +/- 0.01 and Aluminum = 99.718% +/- 0.004
pXRF 72: Barium = 402.73 ppm +/- 39.84, Antimony = 43.5 ppm +/- 10.15, Tin = 30.38 ppm +/- 8.9, Cadmium = 15.04 ppm +/- 7.27, Silver = 13.08 ppm +/- 4.98, Zirconium = 39.3 ppm +/- 6.86, Strontium = 7.03 ppm +/- 2.09, and Iron = 1286.16 ppm +/- 55.64
73: Iron = 0.322% +/- 0.012 and Aluminum = 99.657% +/- 0.006
Animal facing left (Glyph 210) - pXRF 62: Iron = 0.434% +/- 0.015 and Aluminum = 99.563% +/- 0.007
pXRF 71: Barium = 463.65 ppm +/- 43.47, Antimony = 50.31 ppm +/- 11.03, Tin = 36.23 ppm +/- 9.68, Cadmium = 24.61 ppm +/- 7.97, Silver = 17.30 ppm +/- 5.46, Zirconium = 39.66 ppm +/- 7.43, Strontium = 11.19 ppm +/- 2.39, Rubidium = 3.28 ppm +/- 1.54, Iron = 2430.45 ppm +/- 80.1, and Manganese = 57.78 ppm +/- 32.47
p XRF 74: Iron = 0.315% +/- 0.017 and 99.682% +/- 0.005
Head facing left under arc pXRF 63: Iron = 0.367% +/- 0.012 and Aluminum = 99.63% +/- 0.006
pXRF 70: Barium = 349.05 ppm +/- 38.4, Antimony = 30.26 ppm +/- 9.74, Tin = 17.95 ppm +/- 8.5, Cadmium = 12.73 ppm +/- 7.02, Zirconium = 42.56 ppm +/- 6.7, Strontium = 7.32 ppm +/- 2.04, Rubidium = 2.65 ppm +/- 1.35, and Iron = 2364.33
Hand with eye (Glyph 209) pXRF 64: Iron = 0.453% +/- 0.015 and Aluminum = 99.544% +/- 0.008
pXRF 69: 422.48 ppm +/- 42.52, Antimony = 54.46 ppm +/- 10.91, Tin = 42.71 ppm +/- 9.6, Cadmium = 23.32 ppm +/- 7.85, Silver = 10.95 ppm +/- 5.27, Zirconium = 37.49 ppm +/- 7.29, Strontium = 8.65 ppm +/- 2.28, Iron = 3054.54 ppm +/- 87.94, Manganese = 76.26 ppm +/- 32.77
pXRF 76: Iron = 0.325% +/-0.012 and 99.671% +/- 0.006
Abstract under hand with eye (Glyph 211) pXRF 65: Iron = 0.505% +/- 0.015 and Aluminum = 99.492% +/- 0.008
p XRF 68: Barium = 389.65 ppm +/- 41.1, Antimony = 32.13 ppm +/- 10.39, Tin = 28.25 ppm +/- 9.17, Cadmium = 16.79 ppm +/- 7.53, Silver = 10.94 ppm +/- 5.11, Zirconium = 33.32 ppm +/- 7.02, Strontium = 6.37 ppm +/- 2.15, Rubidium = 2.97 ppm +/- 1.46, Iron = 2308.81 ppm +/- 74.98, and Magnesium = 74.92 ppm +/- 31.46
pXRF 77: Iron = 0.41% +/- 0.013 and Aluminum = 99.587% +/- 0.007
Abstract (Glyph 214) pXRF 66: Iron = 0.32% +/- 0.013 and Aluminum = 99.677% +/- 0.006
pXRF 67: Barium = 589.56 ppm +/- 52.43, Antimony = 85.2 ppm +/- 13.5, Strontium = 57.82 ppm +/- 11.8, Cadmium = 34.35 ppm +/- 9.64, Silver = 27.21 ppm +/- 6.72, Palladium = 8.95 ppm +/- 4.86, Zirconium = 53.08 ppm +/- 9.05, Strontium = 10.57 ppm +/- 2.84, Rubidium = 4.72 ppm +/- 1.92, and Iron = 3026.46 ppm +/- 105.38
pXRF 78: Iron = 0.181% +/- 0.009 and Aluminum = 99.814% +/- 0.003
--------------------------------------------------------------------------------------------------------------------------------------
Black Pigment Glyph 017 - pXRF 32: Iron = 0.4% +/- 0.013 and Aluminum = 99.598% +/- 0.006
pXRF 40: Barium = 343.23 ppm +/- 41.23, Antimony = 40.23 ppm +/- 10.57, Tin = 31.84 ppm +/- 9.3, Cadmium = 17.61 ppm +/- 7.62, Silver = 11.37 ppm +/- 5.17, Zirconium = 47.44 ppm +/- 7.29, Strontium = 16.56 ppm +/- 2.45, Rubidium = 2.79 ppm +/- 1.47, Zinc = 7.79 ppm +/- 4.78, and Iron = 2164.85 ppm +/- 73.35
Red Pigment Circle-and-Dot Glyph 2e - pXRF 33: Iron = 0.466% +/- 0.014 and Aluminum = 99.531
pXRF38: Barium = 374.04 ppm +/- 38.52, Antimony = 35.66 ppm +/- 9.77, Tin = 24.1 ppm +/- 8.56, Zirconium = 19.58 ppm +/- 6.45, Strontium = 14.01 ppm +/- 2.22, Rubidium = 3.41 ppm +/- 1.39, and Iron = 3235.21 ppm +/- 82.4 [note.... this is surprisingly low Iron% and ppm]
Red Pigment Abstract beneath "X" Glyph 2g - pXRF 34: Iron = 1.046% +/- 0.024 and Aluminum = 98.951% +/- 0.017
Black Pigment Pointing Glyph 2h - pXRF 35: Iron = 0.569% +/- 0.015 and Aluminum = 99.428% +/- 0.009
pXRF 36: Barium = 490.97 ppm +/- 46.19, Antimony = 52.81 ppm +/- 11.73, Tin = 37.77 ppm +/- 10.29, Cadmium = 26.05 ppm +/- 8.48, Silver = 16.45 ppm 5.78, Zirconium = 46.6 ppm +/- 8, Strontium 19.06 ppm +/- 2.77, Rubidium = 2.96 ppm +/- 1.63, and Iron = 2542.63 ppm +/- 86.78
Black Pigment "L" inverted Glyph 2i - pXRF 41: Barium = 380.46 ppm +/- 41.55, Antimony = 43.61 ppm +/- 10.62, Tin = 30.25 ppm +/- 9.3, Cadmium = 15.23 ppm +/- 7.61, Silver = 8.24 ppm +/- 5.13, Zirconium = 41.55 ppm +/- 7.22, Strontium = 10.3 ppm +/- 2.29, and Iron = 1457.18 ppm +/- 61.57
pXRF 42: Iron = 0.232% +/- 0.011 and Aluminum = 99.765% +/- 0.004
---------------------------------------------------------------------------------------------------------------------------

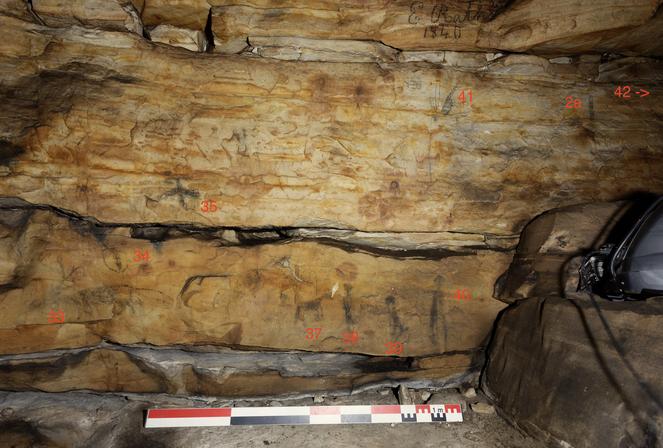

Black Pigment Glyph 37 - pXRF 6: Zirconium = 0.052% +/- 0.015, Iron = 4.805% +/- 0.831, Niobium = 0.104% +/- 0.333, Aluminum = 5.717% +/- 1.481, and Silica = 89.279% +/- 5.56
pXRF 18: Barium = 404.64 ppm +/- 40.49, Antimony = 36.11 ppm +/- 10.23, Tin = 26.29 ppm +/- 9, Silver = 11.82 ppm +/- 5.04, Zirconium = 26.91 ppm +/- 6.84, Strontium = 11.37 ppm +/- 2.25, Rubidium = 2.34 ppm +/- 1.4, and Iron = 2852.89 ppm +/- 81.26.
Black Pigment Glyph 38 -pXRF 7: Iron = 0.52 +/- 0.016, and Aluminum = 99.477 +/- 0.008
pXRF reading 17: Barium = 422.71 ppm +/- 40.47, Antimony = 45.74 ppm +/- 10.29, Tin = 26.2 ppm +/- 8.96, Zirconium = 35.2 ppm +/- 6.91, Strontium = 9.96 ppm +/- 2.21, Rubidium = 3.1 ppm +/- 1.43, Arsenic = 5.37 ppm +/- 3.29, Zinc = 13.1 ppm +/- 5.03, and Iron = 3654.43 ppm +/- 91.06.
Black Pigment Glyph 40 - pXRF reading 8: pXRF 8: Iron = 0.492% +/- 0.016, and Aluminum = 99.505% +/- 0.009
pXRF 16: Barium = 645.45 ppm +/- 54.87, Antimony = 85.03 ppm +/- 14.03, Tin = 74.37 ppm +/- 12.47, Cadmium = 36.32 ppm +/- 10.05, Silver = 28 ppm +/- 7, Zirconium = 67.61 ppm +/- 9.63, Strontium = 15.83 ppm +/- 3.13, Rubidium = 3.22 ppm +/- 1.92, and Iron = 2542.44 ppm +/- 100.95.
Black Pigment Glyph 41 - pXRF 9: Iron = 0.112% +/- 0.01, and Aluminum = 99.884% +/- 0.002
pXRF reading 15; pXRF 15: Barium = 408.78 ppm +/- 40.68, Antimony = 52.13 ppm +/- 10.43, Tin = 35.86 ppm +/- 9.12, Cadmium = 16.33 ppm +/- 7.43, Zirconium = 40.2 ppm +/- 7.04, Strontium = 17.36 ppm +/ 2.42, and Iron = 1515.9 ppm +/- 61.04.
Black Pigmented Glyph 2a to the right of Glyph 41 - pXRF 10: Iron = 0.161% +/- 0.011, an Aluminum = 99.836% +/- 0.003
pXRF 14: pXRF 14: Barium = 542.82 ppm +/- 47.51, Antimony = 78.95 ppm +/- 12.24, Tin 42.5 ppm +/- 10.6, Cadmium = 29.9 ppm +/- 8.72, Silver = 25.5 ppm +/- 6.09, Zirconium = 51.77 ppm +/- 8.22, Strontium = 11.01 ppm +/- 2.59, and Iron = 1449.75 ppm +/- 68.74
----------------------------------------------------------------------------------------------------------------------------------
Leaning man pXRF 86: Barium = 385.57 ppm +/- 40.5, Antimony = 42.68 +/- 10.33, Tin = 32.95 ppm +/- 9.09, Silver = 11.96 ppm +/- 5.05, Zirconium = 32.85 ppm +/- 6.92, Strontium = 7.23 ppm +/- 2.14, Rubidium = 2.78 ppm +/- 1.43, Iron = 2040.28 ppm +/- 69.79, and Manganese = 54.14 ppm +/- 29.99.
pXRF 91 : Iron = 0.13% +/- 0.008, and Aluminum = 99.868% +/- 0.002

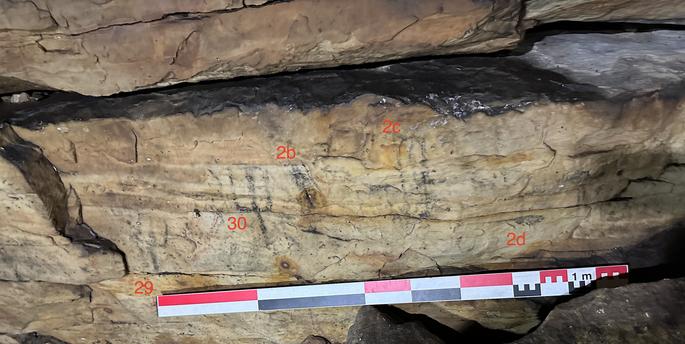

Cave 1, Panel 2, Black Pigment Glyph 29 (rattle?) - pXRF 20: Barium = 483.16 ppm +/- 42.93, Antimony = 60.1 ppm +/- 10.97, Tin = 47.56 ppm +/- 9.67, Cadmium = 22.53 ppm +/- 7.85, Silver = 16.16 ppm +/- 5.37, Palladium = 7.21 +/- 4, Zirconium = 43.99 ppm +/- 7.4, Strontium = 14.53 ppm +/- 2.45, and Iron = 1331.47 ppm +/- 60.22.
pXRF 29: Iron = 0.216% +/- 0.01 and Aluminum = 99.782% +/- 0.004
Black Pigment Glyph 30 (rattle?) - pXRF 21: Barium = 431.59 ppm +/- 42.46, Antimony = 56.15 ppm +/- 10.89, Tin = 33.38 ppm +/- 9.47, Cadmium = 18.85 ppm +/- 7.77, Silver = 10.25 ppm +/- 5.24, Zirconium = 37.3 ppm +/- 7.27, Strontium = 10.28 ppm +/- 2.32, and Iron = 1279.32 ppm +/- 58.92.
pXRF 28: Iron = 0.148% +/- 0.01, and Aluminum = 99.847% +/- 0.003
Black Pigment Glyph 2b - pXRF 22: Barium = 506.35 ppm +/- 43.82, Antimony = 67.97 ppm +/- 11.24, Tin = 46.17 ppm +/- 9.82, Cadmium = 20.24 ppm +/- 7.96, Silver = 13.72 ppm +/- 5.42, Palladium = 8.85 ppm +/- 4.1, Zirconium = 68.04 ppm +/- 7.82, Strontium = 16.62 ppm +/- 2.56, Iron = 1393.02 ppm +/- 62.56, and Manganese = 54.08 ppm +/- 32.12
pXRF 27: Aluminum = 99.99% +/- 0.001
Black Pigment Glyph 2c - pXRF 23: Barium = 458.48 ppm +/- 40.3, Antimony = 45.45 ppm +/- 10.2, Tin = 35.6 ppm +/- 8.98, Cadmium = 13.77 ppm +/- 7.28, Silver = 10.5 ppm +/- 4.95, Zirconium = 35.61 ppm +/- 6.87, Strontium = 16.55 ppm +/- 2.36, Iron = 1158.47 ppm +/- 53.4, and Manganese = 44.06 ppm +/- 28.77
pXRF 26: Iron = 0.188% +/- 0.009, and Aluminum = 99.811% +/- 0.003
Black Pigment Glyph 2d - pXRF 24: Barium = 456.14 ppm +/- 41.14. Antimony = 58.37 ppm +/- 10.54, Tin = 33.38 ppm +/- 9.16, Cadmium = 19.86 ppm +/- 7.51, Silver = 14.31 ppm +/- 5.13, Zirconium = 32.2 ppm +/- 6.96, Strontium = 10.72 ppm +/- 2.25, Rubidium = 3.38 ppm +/- 1.47, Iron = 1889.16 ppm +/- 67.8, and Manganese = 54.61 ppm +/- 30.05
pXRF 25: Iron = 0.217% +/- 0.014 and Aluminum = 99.78% +/- 0.004
-------------------------------------------------------------------------------------------------------------------------------------

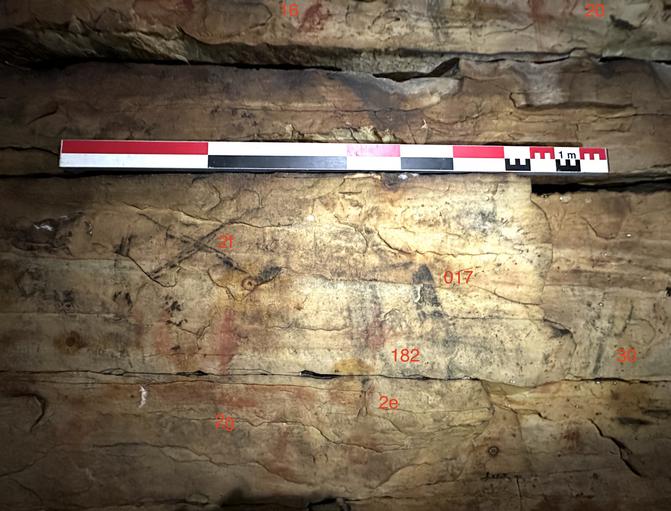

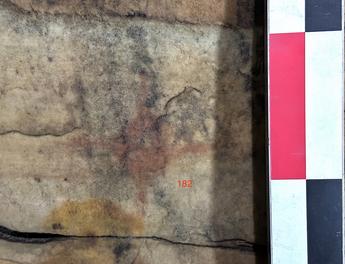

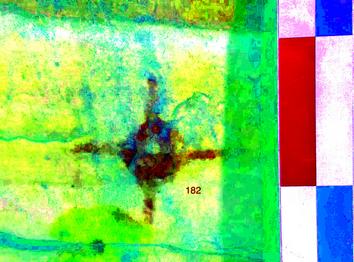

Cave 1, Panel 2, Glyph 182 (Red pigment Circle-and-Cross) Normal light photography and DStretch processing (filter crgb)
pXRF 31: Iron = 0.955% +/- 0.021 and Aluminum = 99.043% +/- 0.014
pXRF 39: Barium = 402.4 ppm +/- 38.71, Antimony = 43.72 ppm +/- 9.85, Tin = 43.72 ppm +/- 8.54, Zirconium = 13.48 ppm +/- 6.38, Strontium = 11.77 ppm +/- 2.16, Iron = 3013.72 ppm +/- 79.84, and Manganese = 48.31 ppm +/- 28.64
----------------------------------------------------------------------------------------------------------------

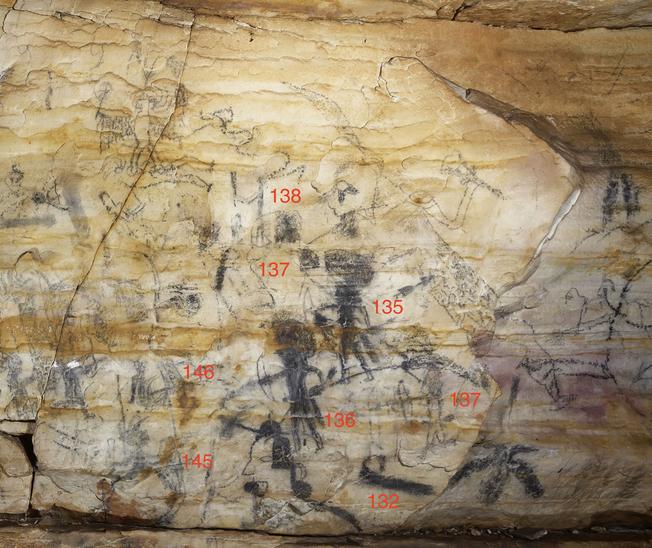

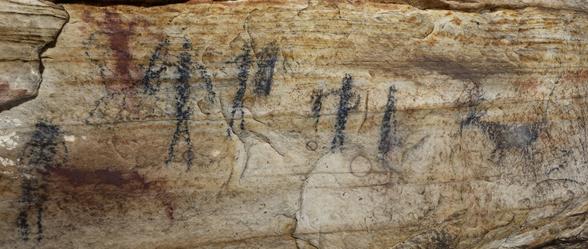

Cave 1, Panel 1. In front of forked eye warrior (Glyph 130)
Black Pigment Top Twin (Glyph 135) pXRF43: Iron = 0,091% +/- 0.007 and Aluminum = 99.906% +/- 99.906% +/- 0.002
pXRF58 = Barium = 471.48 ppm +/- 46.75, Antimony = 64.3 ppm +/- 12.01, Tin = 37.94 ppm +/- 10.46, Cadmium = 19.87 ppm +/- 8.53, Silver = 24.65 +/- 6.03, Zirconium = 52.97 ppm +/- 8.18, Strontium = 8.39 ppm +/- 2.49, and Iron = 529.98 ppm +/- 45.34.
Black Pigment Low Twin (Glyph 136) pXRF 44: Iron = 0.087% +/- 0.007 and Aluminum 99.911% +/- 0.002
pXRF 57 = Barium = 338.34 ppm +/- 38.84, Antimony = 38.62 ppm +/- 9.94, Tin = 17.84 ppm +/- 8.62, Cadmium = 16.61 ppm +/- 7.16, Zirconium = 25.53 ppm +/- 6.59, Strontium = 7.91 ppm +/- 2.08, and Iron = 501.34 ppm +/- 37.33
Black Pigment Running Archer (Glyph 131) pXRF 45: Iron = 0.071% +/- 0.006 and Aluminum = 99.925% +/- 0.006
pXRF 56: Barium = 422.63 ppm +/- 41.51, Antimony 43.6 ppm +/- 10.55, Tin - 32.61 ppm +/- 9.26, Cadmium = 18.69 ppm +/- 7.6, Pallidium = 5.86 ppm +/- 3.87, Zirconium = 34.83 ppm +/- 7.09, Strontium = 9.23 ppm +/- 2.24, Zinc = 9.63 ppm +/- 4.93, Iron = 540;1 ppm +/- 40.64, and Manganese = 44.53 ppm +/- 29.68
Black Pigment Sideways J (Glyph 132) pXRF 46: Iron = 0.071% +/- 0.006 and Aluminum = 99.925% +/- 0.001
pXRF 55: Barium = 439.51 ppm +/- 43.99, Antimony = 57.64 ppm +/- 11.29, Tin = 42.39 ppm +/- 9.92, Cadmium= 21.34 ppm +/- 8.07, Silver = 19.33 ppm +/- 5.59, Zirconium = 44.35 ppm +/- 7.62, Strontium = 9.99 ppm +/- 2.4, Zinc = 9.3 ppm +/- 5.18, and Iron = 439.62 ppm +/- 39.92
Black Big Bird Head (Glyph 137) pXRF 47: Iron = 0.108% +/- 0.009 and Aluminum = 99.889% +/- 0.002
pXRF 54: Barium = 456.43 ppm +/- 44.64, Antimony = 57.13 ppm +/- 11.43, Tin = 45.07 ppm +/- 10.06, Cadmium = 23.22 ppm +/- 8.2, Silver = 15.17 ppm +/- 5.59, Zirconium = 45.38 ppm +/- 7.73, Strontium = 10.56 ppm +/- 2.44, and Iron = 631.71 ppm +/- 46.24
Black Mace Marcher (Glyph 138) pXRF 48: Iron = 0.076% +/- 0.007 and Aluminum = 99.92% +/- 0.002
pXRF 53: Barium = 789.96 ppm +/- 68.89, Antimony = 119.44 ppm +/- 17.78, Tin = 98.4 ppm +/- 8.91, Zirconium = 93.12 ppm +/- 12.36, Strontium = 11.67 ppm +/- 3.71, Zinc = 15.73 ppm +/- 9.37, Iron = 537.07 ppm +/- 66.13, and Manganese = 84.9 ppm +/- 52.36
Black Pigment Shielded warrior Top (Glyph 146) - pXRF 50: Iron = 0.086% +/- 0.012 and Aluminum = 99.908% +/- 0.002
pXRF 51: 853.66 ppm +/- 78.95, Antimony = 148.6 ppm +/- 20.62, Tin = 101.95 ppm +/- 17.98, Cadmium = 45.81 ppm +/- 14.36, Silver = 34.66 ppm +/- 10.11, Zirconium = 81.88 ppm +/- 13.89, Strontium = 13.16 ppm +/- 4.34, Iron = 764.31 ppm +/- 86.23, and Manganese = 112.8 ppm +/- 62.52
Black Pigment Shielded warrior Low (Glyph 145) pXRF49: Iron = 0.102% +/- 0.007 and Aluminum = 99.895% +/- 0.002
pXRF 52: Barium = 374.15 ppm +/- 40.23, Antimony = 49.39 ppm +/- 10.33, Tin = 32.7 ppm +/- 9.04, Cadmium = 11.96 +/- 7.33, Silver = 9.41 ppm +/- 4.98, Zirconium = 43.42 ppm +/- 7.01, Strontium = 8.64 ppm +/- 2.17, and Iron = 542.29 ppm +/- 39.57
--------------------------------------------------------------------------------------------------------------------------------

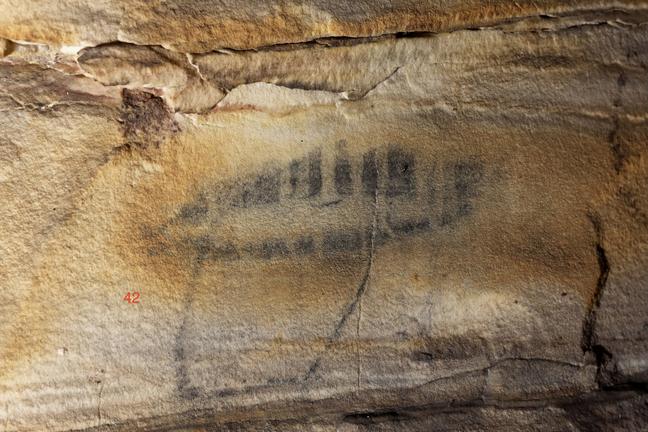

Cave 1, Panel 2, Black Pigment Glyph 42: pXRF 13: Barium = 384.33 ppm +/- 40.55, Antimony = 46.71 ppm +/- 10.38, Tin = 26.89 ppm +/- 9.04, Silver = 9.32 ppm +/- 5.02, Zirconium = 19.99 ppm +/- 6.78, Strontium = 8.73 ppm +/- 2.19, and Iron = 1669.28 ppm +/- 63.76
------------------------------------------------------------------------------------------------------------------------------
210
Something under hand with eye (Glyph 211) pXRF 65: Iron = 0.505% +/- 0.015 and Aluminum = 99.492% +/- 0.008
pXRF 68: Barium = 389.65 ppm +/- 41.1, Antimony = 32.13 ppm +/- 10.39, Tin = 28.25 ppm +/- 9.17, Cadmium = 16.79 ppm +/- 7.53, Silver = 10.94 ppm +/- 5.11, Zirconium = 33.32 ppm +/- 7.02, Strontium = 6.37 ppm +/- 2.15, Rubidium = 2.97 ppm +/- 1.46, Iron = 2308.81 ppm +/- 74.98, and Magnesium = 74.92 ppm +/- 31.46
pXRF 77: Iron = 0.41% +/- 0.013 and Aluminum = 99.587% +/- 0.007
Abstract (Glyph 214) pXRF66: Iron = 0.32% +/- 0.013 and Aluminum = 99.677% +/- 0.006
pXRF 67: Barium = 589.56 ppm +/- 52.43, Antimony = 85.2 ppm +/- 13.5, Strontium = 57.82 ppm +/- 11.8, Cadmium = 34.35 ppm +/- 9.64, Silver = 27.21 ppm +/- 6.72, Palladium = 8.95 ppm +/- 4.86, Zirconium = 53.08 ppm +/- 9.05, Strontium = 10.57 ppm +/- 2.84, Rubidium = 4.72 ppm +/- 1.92, and Iron = 3026.46 ppm +/- 105.38
pXRF 78: Iron = 0.181% +/- 0.009 and Aluminum = 99.814% +/- 0.003
Mildly serrated Cahokia bi-notched point found in a disturbed area on the floor of the cave 50 cm. below Glyph 29). Length = 22.9 mm, width = 12.9 mm, thickness = 3.3 mm and weight = 0.7 grams. Two Late Woodland/Mississippian Period pottery sherds found on the surface of a bedrock ledge immediately beneath Glyph 40. Incised sherd with coarse grit temper = 9.2 mm in thickness. Cord marked sherd with cord marked exterior = 6.9 mm in thickness.
-------------------------------------------------------------------------------------------------------------------

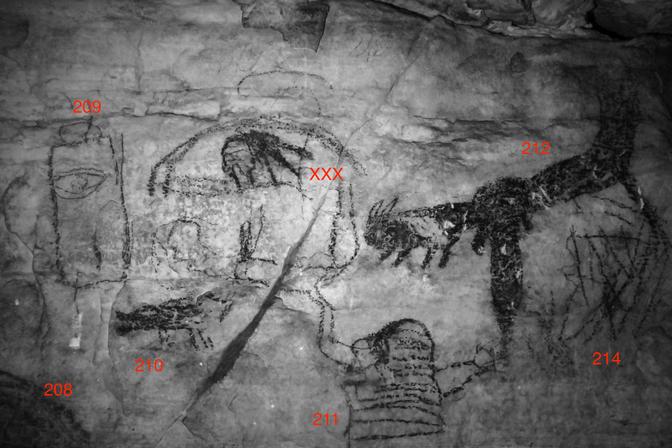

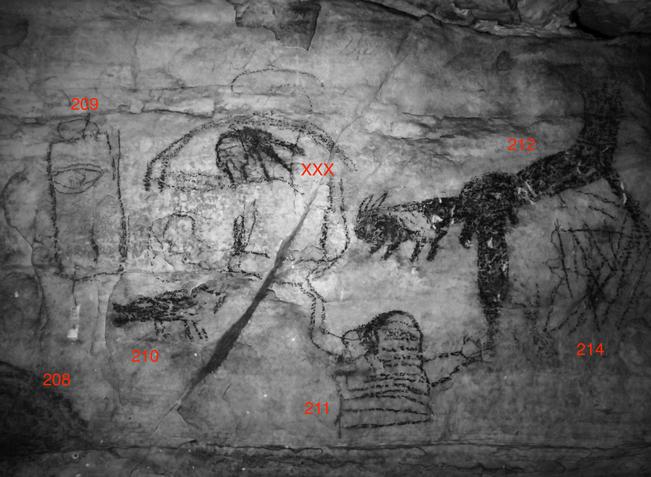

Color images of glyphs 209 (above), XXX (upper right), and 210 (lower right).
-----------------------------------------------------------
Cave 1, Panel 4
pXRF 80: Iron = 0.312% +/- 0.012, and Aluminum = 99.684% +/- 0.005
pXRF 83: Barium = 514.08 ppm +/- 45.84 ppm, Antimony = 67.66 +/- 11.75, x = 36.72 ppm +/- 10.16, Cadmium = 27.32 ppm +/- 8.41, Silver = 13.7 ppm +/- 13.7, Zirconium = 78.2 ppm +/- 8.29, Strontium = 12.05 ppm +/- 2.54, Rubidium = 2.88 ppm 1.6, and Iron = 3444.35 ppm +/- 98.84
pXRF 81: Iron = 0.248% +/- 0.011, and Aluminum = 99.729% +/- 0.005
pXRF 82: Barium = 371.46 ppm +/- 38.61, Antimony = 29.66 ppm +/- 9.76, Tin = 22.89 ppm +/- 8.58 ppm, Cadmium = 14.85 ppm +/- 7.07, Zirconium = 28.42 ppm +/- 6.63, Strontium = 35.12 ppm +/- 2.71, and Iron = 1478.81 ppm +/- 57.59.
Michael Fuller
